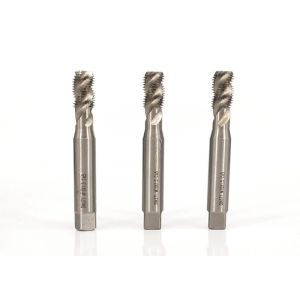

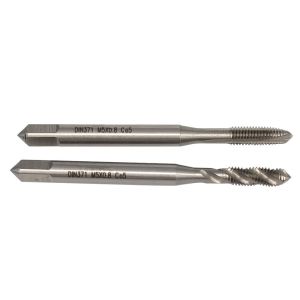

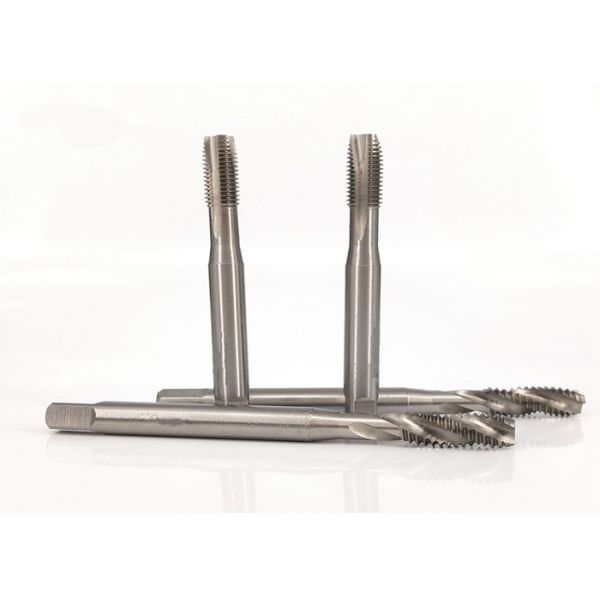

    Cobalt M35 HSS DIN371 Screw Spiral Flute Machine Tap

    Ask Lasest Price
    Brand Name : STARRY
    Model Number : M2-M68
    Certification : ISO9000
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 15000pcs per day
    Delivery Time : 35days
    • Product Details
    • Company Profile

    Cobalt M35 HSS DIN371 Screw Spiral Flute Machine Tap

    High quality and best price DIN371/DIN376 spiral flute taps and spiral pointed screw tap

    Item Name: Spiral Flute HSS Machine Tap

    Material: High Speed Steel HSS Cobalt M35

    Coated: Titanium

    Flute Type: Spiral Flute, helps evacuate chips up and out of the cut to reduce clogging

    Pitch: Coarse Pitch

    Hole Type: Blind Hole

    Tolerance: H2

    Size: M2-M68

    Working Material: Hardened Steel, Stainless Steel, Carbon Steel, Aluminum, Copper, Iron

    Working Machine: Lathe, Radial Drilling Machine, Bench Drill Machine, Pillar Drill Machine, Vertical Milling Machine

    Spiral fluted Design helps evacuate chips up and out of the cut to reduce clogging, provide high performance in accuracy, chip removal, durability and efficiency.


    Classification

    Performance

    Characteristic

    Purpose


    Straight Flute Tap


    Lower debris discharge, through hole

    Right angle groove

    Cutting continuous curved material

    No chip clogging

    Holes with axial grooves in the inner wall

    High flexural damage strength

    Through hole processing

    Strong cutting ability

    High Speed Machining


    Spiral Tap


    Upper debris discharge, blind hole

    Right angle groove

    Cutting continuous curved material

    Tappable to the lowest part of blind hole

    Holes with axial grooves in the inner wall

    Good chip removal effect

    Blind hole processing

    Easy to get into the bottom.


    Easy cutting


    size

    SIZEOVERALL LENGTHTHREAD LENGTH
    M2*0.4418.0
    M2.2*0.4544.59.5
    M2.5*0.4544.59.5
    M3*0.54811.0
    M3.5*0.65013.0
    M4*0.75313.0
    M5*0.85816.0
    M5.5*0.96217.0
    M6*16619.0
    M7*16619.0
    M8*1.257222.0
    M9*1.257222.0
    M10*1.58024.0
    M11*1.58525.0
    M12*1.758929.0
    M14*29530.0
    M16*210232.0
    M18*2.511237.0
    M20*2.511237.0
    M22*2.511838.0
    M24*313045.0
    M27*313545.0
    M30*3.513845.0
    M33*3.515151.0
    M36*416257.0
    M39*417060.0
    M42*4.518767.0
    M45*4.518767.0
    M48*418767.0
    M52*520070.0
    M56*5.520070.0
    M60*5.522176.0
    M64*622479.0
    M68*623479.0

    Packing and Deliver:

    Plastic box with differnet kinds inner box.


    Inner Box Dimension (M2 M2.5 M3 M4) 9.3 * 7 * 7.7


    (M5 M6 M8 M10 M12) 11.5 * 8.2 * 7
